Exterior-Glue Panels for Site Protection and Temporary Works
Three letters describe the panel: C for the face grade, D for the back and X for the Exterior glue that holds the pine veneers together. That build makes a construction-grade sheet for hoarding, temporary floors, crating and sheathing — panels expected to get wet during the job, not to stay wet afterwards.
Key takeaways
- The X in the name stands for Exterior glue, which resists moisture and rain during construction phases.
- A C-grade face is a construction face, not a cabinet face, so buy it for structures where appearance is not graded.
- Pine veneers are laid crosswise so the sheet resists warping and splitting under load — exactly what a subfloor or sheathing panel has to do.
- Order to the job, not to the yard: hoarding, decking and crating each consume different sizes and quantities.
What the three letters commit you to
CDX is a description rather than a brand. Read it as three commitments — veneer quality on the face, veneer quality on the reverse, and a weather-tolerant bond — which together give a construction-grade panel pressed from pine veneers. The face will carry knots, patches and colour variation, and that is expected: nobody buys this sheet for a visible cabinet front.
What buyers are paying for is the adhesive and the lay-up. Exterior glue means the panel tolerates rain and site moisture while the works are open, and a cross-laminated veneer structure spreads load across the sheet instead of concentrating it. Both properties are about surviving a phase of the project rather than about a long service life in the weather.
Where these panels are used on site
Roof decking and underlayment for shingles and tiles, exterior wall sheathing, and subfloors beneath carpet, laminate or vinyl all use the same panel. So do construction barriers and temporary structures — hoarding, fencing, temporary floors — and heavy-duty crates and industrial pallets for transport. The applications share one condition: the sheet is working, not decorating.
Interior use is common as well. Subfloors, wall bracing and structural frames all sit inside the building envelope, where the panel never sees sustained rain but still benefits from a glue line that tolerates a wet season on site.

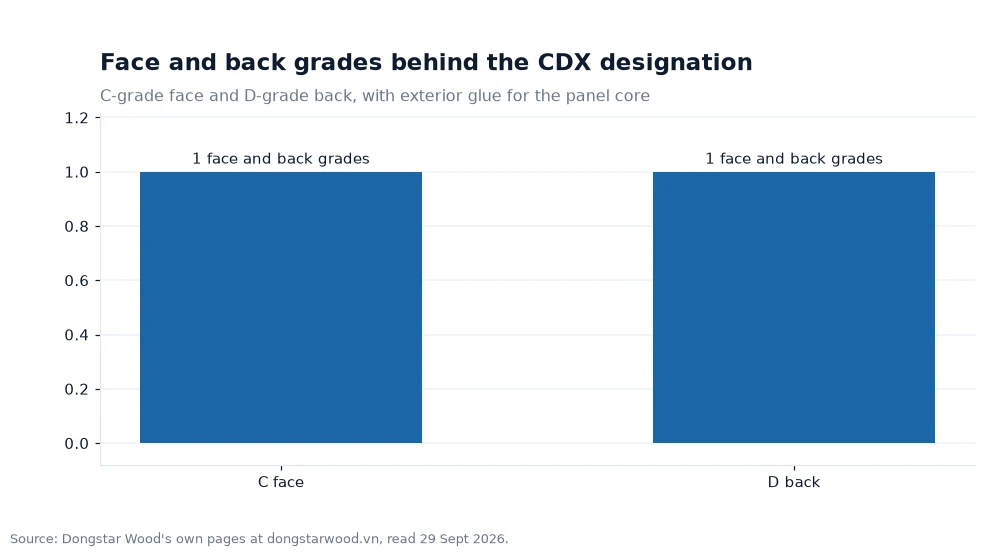

| Element | Meaning | Effect on site |
|---|---|---|
| C-grade face | C-grade veneer on the face | Knots and patches acceptable |
| D back | D-grade veneer on the reverse | Structural duty, not appearance |
| Exterior glue | Weather-tolerant adhesive bond | Resists rain during construction |
| Pine veneers | Construction-grade cross-laminated build | Reduces warping and splitting under load |
Moisture: what it tolerates and what it does not
Exterior glue keeps the panel together in the rain; it does not turn the sheet into a permanent weather barrier. Panels used as cladding, or left exposed across a winter without cover, will swell at the edges and lose the flatness that made them useful in the first place. Specify them for phases and for sheltered positions, and edge-seal any cut that will be rained on.
The practical rule for a site team is simple: cover stacks, keep panels on bearers, and cut the day before installation rather than a fortnight earlier. Temporary protection that outlives its role as protection is where this panel is usually wasted.
Edge sealing deserves the same attention here as on any exposed sheet. A cut edge is an open door for water, and a few minutes with a sealer along the edges of a hoarding panel is the difference between a fence that lasts the contract and one that swells at the joints by spring.
Worked example: hoarding and a subfloor in one order
Size the hoarding first, as an example: a 2.4 m high fence around 100 m of frontage is 2.4 × 100 = 240 m². At 1220 × 2440 mm, one sheet is 1.22 × 2.44 = 2.98 m², so 240 ÷ 2.98 ≈ 81 sheets with the joints handled as butt joints between posts. Add 5% for cutting and damage and the order becomes about 85 sheets.
Now the subfloor, as an example: a 12 m × 10 m footprint is 120 m², and 120 ÷ 2.98 ≈ 40 sheets. Combined, the two jobs need roughly 125 sheets — the sort of quantity where ordering once, cut to two size groups, is simpler for the site team than two separate deliveries.
Buying it well
Price this panel by thickness and by quantity, and confirm the sizes you actually need rather than accepting a substitute format. A CDX Pine Plywood line that publishes its face and back grades makes the appearance question easy to settle, so the discussion can move straight to thickness, quantity and delivery phasing.
Reuse is worth planning too. Hoarding panels lifted carefully and stored under cover when the fence comes down will serve the next phase as temporary floors or crates, and the glue line is what makes a second and third life possible.
Crating is a different job from hoarding even when the sheet is the same. Industrial crates and pallets take load along their edges, so thicker panels and closer batten spacing earn their cost the first time a crate is handled twice.
Quantities for this panel are usually set by area rather than by count, which makes a simple jobs list the best order document: frontage to board, floor to sheath, crates to build, each with its measured area and a percentage for cutting. That list also gives the supplier something concrete to quote against instead of a guessed tonnage.
Phasing temporary works into the programme
Temporary works keep a timetable of their own, and the panel order should follow it. Hoarding goes up before the ground is broken, subfloor sheets arrive as the frame closes, and crating is built weeks later when the first components are ready to travel. Splitting one order into three deliveries is normal practice, and it is far easier to agree at quotation stage than to bolt on later.
Mark each bundle with the phase it belongs to when it arrives. Panels cut for a subfloor and panels cut for hoarding look identical on site, and reaching for the wrong stack usually means a second order rather than a swap.
Frequently asked questions
Can CDX panels be used outdoors permanently?
They are made for exposure during construction rather than for years of open weather. The Exterior glue holds the bond through rain while the works are live, but panels benefit from cover, edge sealing and being kept off standing water once the temporary phase ends.
Why not specify a finer face grade for site work?
Because the finer grade buys appearance that site work does not use. A C-grade face handles hoarding, sheathing and crating duty with knots that are irrelevant to performance, and the money saved is better spent on thickness or on more sheets.
What thickness and quantities should a first order cover?
Work from the jobs list. Measure the hoarding, subfloor or sheathing area, divide by 2.98 m² per 1220 × 2440 mm sheet, and add about 5% for cutting and site damage. Fix thickness against the load or span rather than accepting whatever is in the yard.
Where the panel sits in a wider order
Temporary works rarely travel alone. A site package often combines these sheets with the commercial panel range for fitted elements and with film faced sheets for concrete faces, and the manufacturer's background shows the production and inspection steps behind all three. Ordering them together keeps the programme on one delivery schedule.
